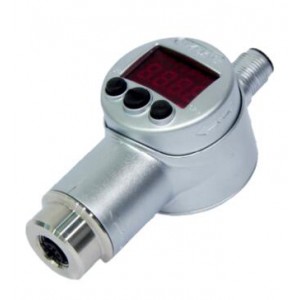

All ranges given in the table can be adjusted by the increments shown.
Lower Switch Value (Window Function)
-27.0 to 146.5 ºC-17 to 296 ºF
Upper Switch Value (Window Function)
-25.5 to 148 ºC-14 to 298 ºF
Increment (Window Function)
0.5 ºC1.0 ºF
Maximum Total Current Consumption
2.455 A
Modification Number
000
Width
40.4 mm
Height
93.2 mm
Separate Temperature Probe (Not Supplied With the Instrument)
TFP 104 - 000 with male electr. conn. 4 pole Binder series 714 M18 (connector supplied)
Part no. 904696
TFP 106 - 000 with male electr. conn. 4 pole M12x1 (connector not supplied)
Part no. 921330
Tank installation sleeve for TFP 100
Part no. 906170
Switching Outputs
2 Switching Outputs
Division
17
BUn
EA
Input Data
Measuring Range
-30 to 150 ºC-22 to 302 ºF
Note for Measuring Range
Depending on the temperature range of the connected temperature sensor, the indication range of the ETS 3800 may be reduced.
Length
42 mm
Input Mechanical Connection Type
M12 Female Cable Connection
Input Mechanical Connection Size
M12x1, 4 Pole Female
Sensing Temperature [Max]
150 ºC302 ºF
Sensing Temperature [Min]
-30 ºC-22 ºF
Output Data
Accuracy at Room Temperature
≤ ± 2.0ºF (+ PT100 error)
Operating Temperature [Min]
-25 ºC-13 ºF
Operating Temperature [Max]
80 ºC176 ºF
Output Temperature Drift at Maximum Zero Point and Range (Full Scale)
≤ ± 0.0085% %/°F
Switch Outputs
Switch Outputs Type
PNP Transistor Switching Output
Maximum Switching Current Per Switch Output
1.2 A
Switching Cycles In Million
> 100 million
Environmental Conditions
Ambient Temperature Range
-13 to 176 ºF
Ambient Temperature According to UL Specifications
-13 to 140 ºF
Storage temperature range
-40 to 176 ºF
CE Mark
CE Mark EN 61000-6-1/2/3/4
CUL®US Mark
Certificate No.: E318391
Note for CUL®US Mark
Environmental conditions according to 1.4.2 UL 61010-1; C22.2 No. 61010-1
Vibration Resistance According to DIN EN 60068-2-6 at 0 to 500 Hz
≤ 10 g
Shock Resistance According to DIN EN 60068-2-29 (11 ms)
≤ 50 g
Protection class to IEC 6529
IP 67
Pin Connections
Pin Connection 1
+UB
Pin Connection 2
SP2
Pin Connection 3
0 Voltage
Pin Connection 4
SP1
Setting Options
All the settings available on the ETS 3800 are combined in 2 easy-to-navigate menus. To prevent unauthorized adjustment of the instrument, a programming lock can be set.
Additional Information
For optimum adaptation to the particular application, the instrument has many additional adjustment parameters (e.g. switching delay times, N/C / N/O function, etc.).
Accessories
A male cable connector M12x1, 4 pole, to connect the separate temperature probe and a 3 m sensor cable, LIYCY 4 x 0.25 mm² are supplied with the instrument. Other accessories, such as electrical connectors, splash guards, clamps for wall-mounting, etc. can be found in the Accessories brochure.
Special Features
2 switching outputs, up to 1.2 A load per output
Optional analog output signal selectable (4 .. 20 mA / 0 .. 10 V)
4-digit digital display
Optimum alignment - display can be rotated in two planes (axes)
Switching / switch-back points and many useful additional functions can be set using keypad
Display of temperature and unit of measurement in ºC or ºF
Switching mode of the switching outputs adjustable (switching point function or window function)
Switching direction of the switching outputs adjustable (N/C or N/O)
Switch-on and switch-off delay adjustable from 0.00 .. 99.99 seconds
Choice of display (actual temperature, peak temperature, switching point 1, switching point 2, display off)
Note
Reverse polarity protection of the supply voltage, excess voltage, override and short circuit protection are provided.
