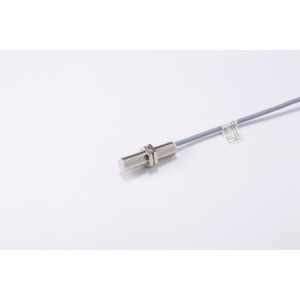

M12圓柱形電感式接近傳感器，齊平8毫米長距離型金屬接近開關
|
技術參數
|
|
|
安裝方式
|
齊平
|
|
檢測距離
|
8mm
|
|
LED顯示
|
有
|
|
工作電壓
|
10-30VDC
|
|
允許脈動電壓
|
<10%
|
|
無負載電流
|
<10mA
|
|
負載電流
|
200mA
|
|
漏電流
|
<0.01mA
|
|
電壓降
|
<1.5v
|
|
開關頻率
|
2KHZ
|
|
響應時間
|
0.1ms
|
|
開關磁滯
|
<15%(Sr)
|
|
重復精度
|
<1.0%(Sr)
|
|
防護等級
|
IP67
|
|
工作溫度
|
-25℃至+70℃
|
|
溫度漂移
|
<10%(Sr)
|
|
過載電流保護
|
220mA
|
|
感應面材質
|
PBT
|
|
連接方式
|
2米防油PVC電纜
|
M12電感式近接傳感器，檢測距離2mm/4mm/6mm/8mm，齊平，標準型體長45mm，短型體長30mm，超短型體長22mm，出線式：
I1CF-M1202N-O3U2,I1CF-M1202N-C3U2,I1CF-M1202P-O3U2,
I1CF-M1202P-C3U2,I1CF-M1204N-O3U2,I1CF-M1204N-C3U2,
I1CF-M1204P-O3U2,I1CF-M1204P-C3U2,I1CF-M1206N-O3U2,
I1CF-M1206N-C3U2,I1CF-M1206P-O3U2,I1CF-M1206P-C3U2,
I1CF-M1208N-O3U2,I1CF-M1208N-C3U2,I1CF-M1208P-O3U2,
I1CF-M1208P-C3U2,I1CF-M1202N-O3S2,I1CF-M1202N-C3S2,
I1CF-M1202P-O3S2,I1CF-M1202P-C3S2,I1CF-M1204N-O3S2,
I1CF-M1204N-C3S2,I1CF-M1204P-O3S2,I1CF-M1204P-C3S2,
I1CF-M1206N-O3S2,I1CF-M1206N-C3S2,I1CF-M1206P-O3S2,
I1CF-M1206P-C3S2,I1CF-M1208N-O3S2,I1CF-M1208N-C3S2,
I1CF-M1208P-O3S2,I1CF-M1208P-C3S2,I1SF-M1202N-O3R2,
I1CF-M1202N-C3R2,I1CF-M1202P-O3R2,I1CF-M1202P-C3R2,
I1CF-M1204N-O3R2,I1CF-M1204N-C3R2,I1CF-M1204P-O3R2,
I1CF-M1204P-C3R2,I1CF-M1206N-O3R2,I1CF-M1206N-C3R2,
I1CF-M1206P-O3R2,I1CF-M1206P-C3R2,
