福斯Flowserve Flite flow截止閥

點擊圖片查看原圖

品牌：	Edward

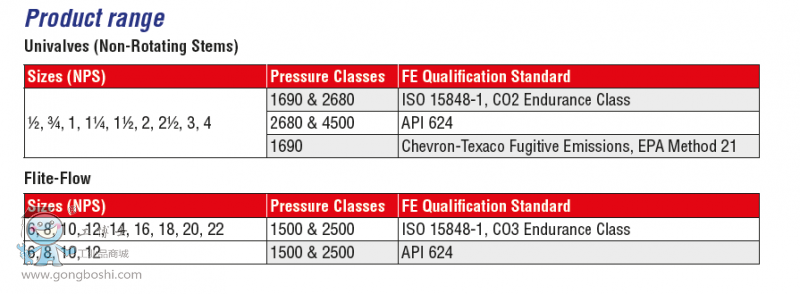

Size：	1/2 " - 4 "
Pressure：	class 1500 - 4500
單價：	8888.00元/臺
所在地：	上海
有效期至：	長期有效
最后更新：	2019-05-31 10:47
瀏覽次數：	465

店鋪基本資料信息

flowserve閥門
[VIP第3年] 指數:4
通過認證 [誠信檔案]
聯系人周經理(女士) 銷售經理
會員 [當前離線] [加為商友] [發送信件]
電話0731-88706966
手機0731-88706966 [發送短信]
地址上海市寶山區富聯一路98弄6號

產品詳細說明

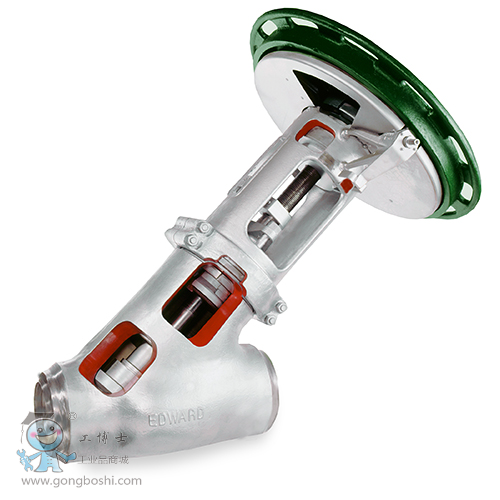

Edward forged Flite-Flow globe valves Featurs a body-guided disc that ensures precise alignment with the body, the design allows for enhanced sealing capability and minimized process disruptions resulting from disc to body misalignment. The body-guided disc also protects the stem and prolongs its service life by minimizing galling and stem binding.
The Y-pattern body configuration allows for smooth process operation and continuous process yield through optimized flow passages and smooth transitions that reduce pressure drops and destructive turbulence. The construction of the valve body and pressure-retaining components in forged materials increases the robustness of the design and improves process reliability by withstanding the rigors of intermittent use.

Features and Benefits

• Robust, fugitive emissions complying design qualified at high pressure classes 2500 and 2680 offering greater reliability compared to limited
performance designs available in the market that are qualified at lower pressure classes 600 and below
• Fugitive Emissions Compliance Certifications in accordance with latest industry standards
• Leak tightness assured over a prolonged period via high performance stem packing design
• Reduced maiatenance costs via increased intervals and valve cycles between packing replacement
• Increased operational efficiency from minimized leakage due to the enhanced sealing capability of the body guided disc design

Flowserve-Edward-Y-PatternGlobeValves-Flite-Flow[2]
