產品配置：

機箱：IPC-610MB-L
主板：AIMB-562L
CPU：E5300
內存：2G
硬盤：500G
DVD光驅，鼠標，鍵盤


機箱說明：

• Supports an ATX motherboard or a backplane with up to 15 slots
• Shock-resistant disk drive bay design holds up to three 5.25" and one 3.5" disk drives
• Special hold-down clamp design with rubber cushions protects the cards from shocks and vibrations
• Power and HDD activity notification improves system availability
• Front-accessible air filter for easy system maintenance
• Lockable front door prevents unauthorized access
• Flexible mechanical design supports both 300 W single PS/2 and redundant ATX power supply

Specifications

Drive Bay	Front-accessible
5.25"	3
3.5"	1
Cooling	Fan	1 (85 CFM)
Air Filter	Yes
Miscellaneous	Slide Rail	General Device C-300 series supported (Not included)
Indicator	Power & HDD activity
Rear Panel	Reserved one D-SUB 9-pin and one 68-pin SCSI openings
Environment	Operating	Non-Operating
Temperature	0 ~ 40 °C (32 ~ 104 °F)	-20 ~ 60 °C (-4 ~ 140 °F)
Humidity	-20 ~ 60 °C (-4 ~ 140 °F)	10 ~ 95 % @ 40 °C, non-condensing
Vibration (5 ~ 500 MHz)	1 Grms	2 G
Shock	10 G (With 11 msec duration, 1/2 sine wave)	30 G
Acoustic Noise	Less than 52 dB sound pressure at 5 ~ 28 °C (41 ~ 82 °F)
Altitude	0 to 3048 m (0 ~ 10,000 ft)
Physical Characteristics	Dimensions (W x H x D)	482 x 177 x 480 mm (19" x 7" x 18.9")
Weight	16.5 kg (36.3 lb)

主板說明：

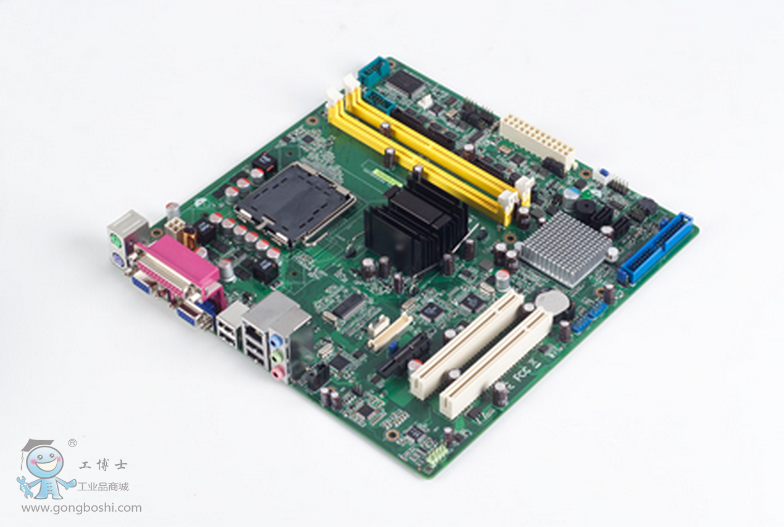

AIMB-562L

Category	Attribute	Value
Display	Controller	Intel Chipset integrated VGA controller (GMA 950)
	Graphic Engine	DirectX 9 and Open GL 1.4 supported
	Graphic Memory	Share with system memory up to 224 MB
	VGA	1 x VGA
Form Factor	Form Factor	Micro ATX
I/O	COM Port	2 ( 2 x RS232)
	GPIO	16-bit GPIO
	Keypad	1
	LPT	1
	USB2.0	8
Memory	ECC Support	No
	Max. Capacity	4 GB
	Socket	2 x 240-pin DIMM
	Technology	DDR2 533/667 MHz
Processor	BIOS	Award 16Mbit
	Chipset	Intel Q945GC + ICH7
	Core Number	1 ~ 2
	CPU	Intel Core 2 Duo E7400 / Pentium Daul-Core E2200 / Pentium 4 651/ Celeron 440
	CPU TDP	86W / 65W
	Frequency	2.0GHz ~ 3.4GHz
	L2 Cache	512KB ~ 4MB
Storage	IDE	1
	SATA	2 x SATAII (Max. Data Transfer Rate 300 MB/s)
Operating System	Linux	Yes
	Microsoft Windows	Yes
	SUSIAccess	Yes
Environment	Non-Operational Temperature	-20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
	Operational Temperature	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
	Vibration Resistance	3.5 Grm (Non-Operation Mode)
Power	Battery	Lithium 3 V / 200 mAh
	Connector	ATX24P
	Power Consumption (Full Load)	4A @ 5V / 1.02A @ 3.3V / 2.35A @ 12V / 0.26A @ 5Vsb / 0.12A @ -12V
	Power Type	ATX
Ethernet	Connector	RJ45 x 1
	Controller	GbE1: RTL8111C
	Speed	10/ 100/ 1000 Mbps
Audio	Audio Interface	HD Audio
	CODEC	Realtek ALC888
	Connector	2 (Line out, Mic-in)
Watchdog Timer	WatchDog Timer	Yes
Certification	EMC	CE, FCC
Expansion	PCI	2
	PCI Express x 1	1
Physical	Dimension (mm)	244 x 244 mm
	Weight	1.2 kg (2.64 lb), weight of total package
