| 主板 |
NSB 5130 支持二代 Intel® Core™ 處理器，*大 95w Intel® C206 |
| 內存 |
4 x 240-pin DDR3 1066/1333MHz DIMM slots, up to 16GB |
| LAN 特點 |
LAN Chip: Intel® 82583V Support 10/100/1000 link speed LAN Bypass: 4 pairs LAN module (optional) |
| 擴展 |
1 x PCIe x8 Slot |
| I/O 接口-前面板 |
Power status/ HDD status/ LAN status/ Bypass status LED 2 x USB 2.0 ports 1 x RJ45 type console port 8 x copper LAN ports 1 x LAN modular (optional) |
| I/O 接口-后面板 |

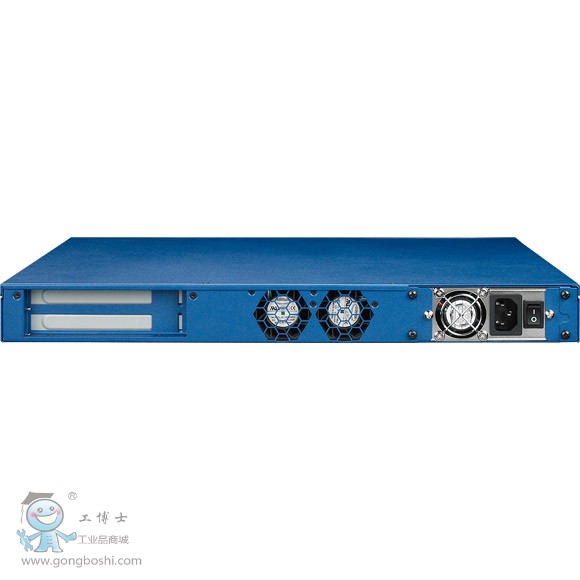

1 x expansion slot 2 x USB 2.0 ports(optional) 1 x VGA port(optional) |
| 設置 |
1 x on-board CompactFlash socket 1 x internal 3.5” HDD bay 1 x SATA-DOM device space |
| 電源輸入 |
200W ATX Power Supply |
| 規格尺寸 |
Chassis Dimension: 426mm x 450mm x 44mm Carton Dimension: 560mm x 620mm x 190mm |
| 重量 |
Without Packing: 8Kg With Packing: 12Kg |
| 通過認證 |
CE approval FCC Class A UL |
